Short Description:

Steel H BeamDescripition of Product ApplicationH beam is widely used in various building structure and engineering structure: A). Used for the plant, high-rise building constructionB). Used for the bridge, shipment buildingC). Used for lifting and transportation machinery, equipment manufacturing base buildingD). Used for the support, foundation pile manufacturingSpecificationStandard: GB, JIS, ENGrade: GB9787-88, Q235B, G3101 SS400/SS540, S235J...


Download as PDF

Product Detail

Product Tags

Related Video

Feedback (2)

Our personnel are generally in the spirit of "continuous improvement and excellence", and together with the outstanding top quality merchandise, favorable price tag and fantastic after-sales solutions, we try to gain every single customer's rely on for Hydraulic Pusher , Shear Machine , Roughing Roll , We are looking forward to establishing long-term business relationships with you. Your comments and suggestions are highly appreciated.
Good Quality Section Steel – ASTM H Beam High Quality and Price Structural Steel Beams -Geili Detail:

Steel H Beam
Descripition of Product

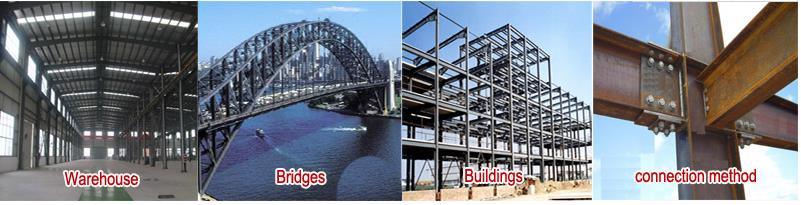

Application
H beam is widely used in various building structure and engineering structure:
A). Used for the plant, high-rise building construction
B). Used for the bridge, shipment building
C). Used for lifting and transportation machinery, equipment manufacturing base building
D). Used for the support, foundation pile manufacturing
ASTM H Beam High Quality and Price Structural Steel Beams
Specification
Standard: GB, JIS, EN
Grade: GB9787-88, Q235B, G3101 SS400/SS540, S235JR S275JR
Size of JIS H Beam

Size(mm) Kg/m Size(mm) Kg/m
100*100*6*8 16.9 340*250*9*14 78.1
125*125*6.5*9 23.6 346*174*6*9 41.2
148*100*6*9 20.7 350*175*7*11 49.4
150*75*5*7 14 350*350*12*19 135
150*150*7*10 31.1 390*300*10*16 105
175*90*5*8 18 400*200*8*13 65.4
175*175*7.5*11 40.4 400*400*13*21 172
194*150*6*9 29.9 440*300*11*18 121
198*99*4.5*7 17.8 446*199*8*12 65.1
200*100*5.5*8 20.9 450*200*9*14 74.9
200*200*8*12 49.9 488*300*11*18 125
244*175*7*11 43.6 496*199*9*14 77.9
248*124*5*8 25.1 500*200*10*16 88.2
250*125*6*9 29 588*300*12*20 147
250*250*9*14 71.8 596*199*10*15 92.5
294*200*8*12 55.8 600*200*11*17 103.4
298*149*5.5*8 32 700*300*13*24 182
298*201*9*14 65.4 800*300*14*26 207
300*150*6.5*9 36.7 900*300*16*28 240.1
300*300*10*15 93

Size of GB (Chinese Standard H Beam)

Size(mm) Kg/m SIize(mm) Kg/m Size(mm) Kg/m
100*50*5.0*7 9.54 294*302*12.0*12 85 450*200*9.0*14 76.5
100*100*6.0*8 17.2 298*149*5.5*8 32.6 458*417*30.0*50 415
125*50*6.0*8 13.3 300*150*6.5*9 37.3 482*300*11.0*15 115
125*125*6.5*9 23.8 300*300*10.0*15 94.5 488*300*11.0*18 129
148*100*6.0*9 21.4 300*305*15.0*15 106 496*199*9.0*14 79.5
150*75*5.0*7 14.3 340*250*9.0*14 79.7 498*432*45.0*70 605
150*150*7.0*10 31.9 344*348*10.0*16 115 500*200*10.0*16 89.6
175*90*5.0*8 18.2 346*174*6.0*9 41.8 506*201*11.0*19 103
175*175*7.5*11 40.4 350*175*7.0*11 50 582*300*12.0*17 137
194*150*6.0*9 31.2 350*350*12.0*9 137 588*300*12.0*20 151
198*99*4.5*7 18.5 390*300*10.0*16 107 594*302*14.0*23 175
200*100*5.5*8 21.7 394*398*11.0*18 147 596*199*10.0*15 95.1
200*200*8.0*12 50.5 396*199*7.0*11 56.7 600*200*11.0*17 106
200*204*12.0*12 56.7 400*200*8.0*13 66 606*201*12.0*20 120
244*175*7.0*11 44.1 400*400*13.0*21 172 692*300*13.0*20 166
248*124*5.0*8 25.8 400*408*21.0*21 197 700*300*13.0*24 185
250*125*6.0*9 29.7 414*405*18.0*28 233 792*300*14.0*22 191
250*250*9.0*14 72.4 428*407*20.0*35 284 800*300*14.0*26 210
250*255*14.0*14 82.2 440*300*11.0*18 124 890*299*15.0*23 213
294*200*8.0*12 57.3 446*199*8.0*12 66.7 900*300*16.0*28 243

Size of European Standard H Beam

Specification
Depth*flange width
(mm)		 Web thickness
(mm)		 Flange thickness
(mm)		 Weight
(kg/m)
HE 240A 230*240 7.5 12 60.3
HE 240B 240*240 10 17 83.2
HE 260A 250*260 7.5 12.5 68.2
HE 260B 260*260 10 17.5 93
HE 280A 270*280 8 13 76.4
HE 280B 280*280 10.5 18 103
HE 300A 290*300 8.5 14 88.3
HE 300B 300*300 11 19 117
HE 320A 310*300 9 15.5 97.6
HE 320B 320*300 11.5 20.5 127

Chemical Composition of JIS (Japanese Standard)

Grade Thicknessmm C(%) Si(%) Mn(%) P(%) S(%)
SS400 -- -- -- -- ≤0.050 ≤0.050
SM490A ≤50 ≤0.20 ≤0.55 ≤1.60 ≤0.035 ≤0.035
>50-200 ≤0.22 ≤0.55 ≤1.60 ≤0.035 ≤0.035
SM490B ≤50 ≤0.18 ≤0.55 ≤1.60 ≤0.035 ≤0.035
>50-200 ≤0.20 ≤0.55 ≤1.60 ≤0.035 ≤0.035

Mechanical Properties of JIS(Japanese Standard)

Grade Yield Strength Tension Strength
(MPa)		 Elongation 180Cold-Bend Test
R-Pin Diameter
A-Thickness		 Akv(0ºC)/J
Thicknessmm ΣS≥(MPa) Thickness
(mm)		 Δ≥(%)
SS400 ≤16 245 400-510 Plate, Strip, Flat Bars R=1.5A
≤5 21
>16-≤40 235 5-16 17
16-50 21
>40 23
>40 215 Bars, Angles R=1.5A
≤25 25
>25 30
SM490A ≤16 325 490-610 ≤5 22 -- --
>16-≤40 315 5-16 17
16-50 21
>40 295 >40 23
SM490B ≤16 325 490-610 ≤5 22 -- ≥27
>16-≤40 315 5-16 17
    16-50 21
>40 295 >40 23

Chemical Composition of GB (Chinese Standard)

Grade Grade C
(%)		 Mn
(%)		 Si P S V
(%)		 Nb
(%)		 Ti
(%)
≤(%)
Q195 - 0.06-0.12 0.25-0.50 0.30 0.050 0.045 - - -
Q215 A 0.09-0.15 0.25-0.55 0.30 0.050 0.045 - - -
B 0.045 - - -
Q235 A 0.14-0.22 0.30-0.65 0.30 0.050 0.045 - - -
B 0.12-0.20 0.30-0.70 0.045 - - -
Q345 A ≤0.20 1.00-1.60 0.55 0.045 0.045 0.02
-0.15		 0.015
-0.060		 0.02
-0.20
B 0.040 0.040

Mechanical Properties of GB (Chinese Standard)

Grade Yield Strength Tension Strength
(MPa)		 Elongation 180°Cold-Bend Test
R-Pin Diameter
A-Thickness		 Charpy V-notch Impact Test
(Longitudinal)
Thickness
(mm)		 ΣS≥
(MPa)		 Thickness
(mm)		 Δ
≥(%)		 Longitudinal Transverse TemperatureºC AKV/J≥
Q235 ≤16 235 375-500 ≤16 26 A 1.5A 20 27
>16-40 225 >16-40 25
>40-60 215 >40-60 24 0
>60-100 205 >60-100 23 2A 2.5A
>100-150 195 >100-150 22 2.5A 3A -20
>150 185 >150 21
Q345 ≤16 345 470-630 21 - - 20 34
>16-35 325
>35-50 295
>50-100 275

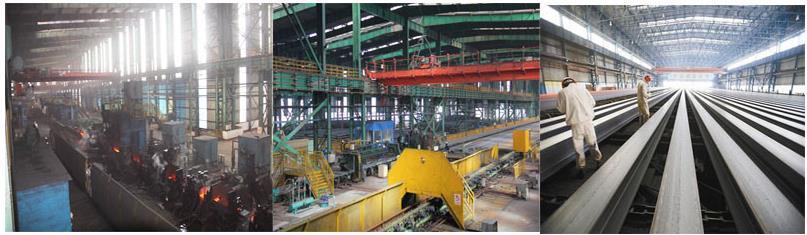

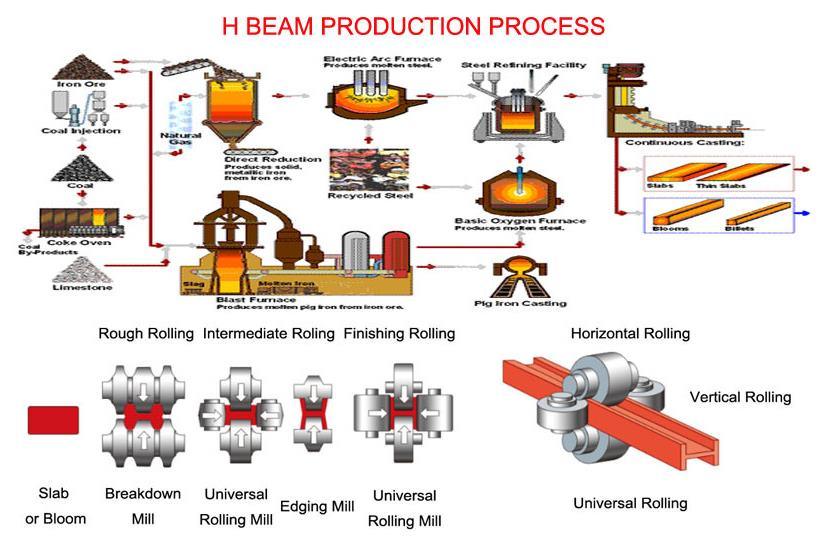

Production Process
ASTM H Beam High Quality and Price Structural Steel Beams

ASTM H Beam High Quality and Price Structural Steel Beams

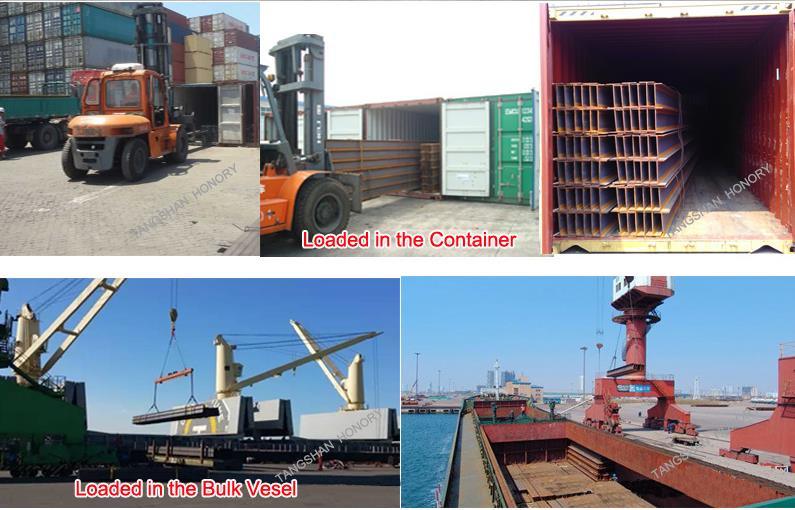

Storage & Delivery
ASTM H Beam High Quality and Price Structural Steel Beams
ASTM H Beam High Quality and Price Structural Steel Beams
Company Profile

Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established. until now, yuxuan steel has staff of 192 persons, and passed trough the iso9001:2000 quality management suystem certification in 2014. with an average of 30,000tons for all sizes stock, the products have been saled all over the world. our sales amount has exceeded 1.2 million tons, including 260 million u.s. dollars of export, which makes yuxuan steel ranked top 5 in tangshan exportation area, and top 30 all over the china among steel exporting companies.

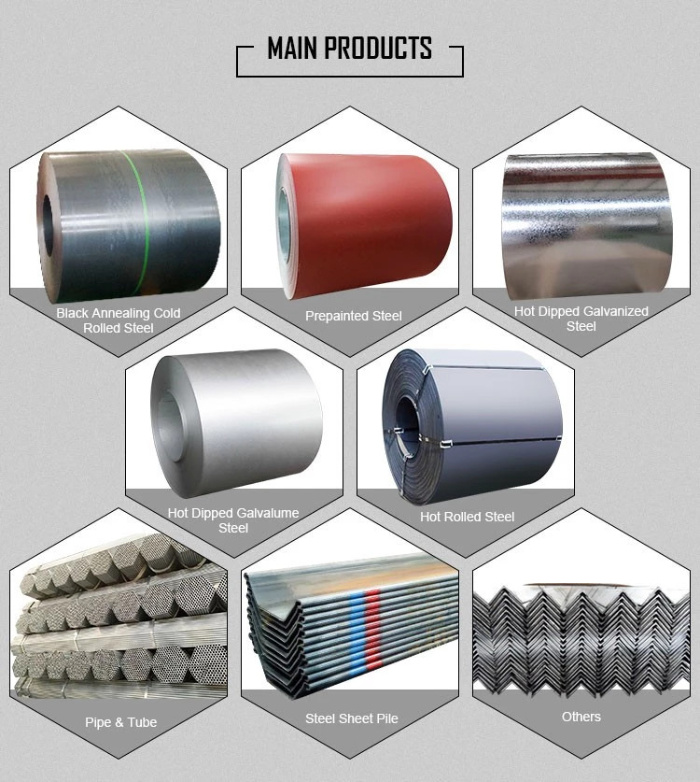

The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.

Our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. the company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also comprehensive after-sales service.

We are firmly conviced that we will have a much more promising future together!
ASTM H Beam High Quality and Price Structural Steel Beams
ASTM H Beam High Quality and Price Structural Steel Beams
ASTM H Beam High Quality and Price Structural Steel BeamsFAQ

Q1,How to get an accurate quotation?

 Product detail size & Length

 Product quantities.
 Product Material grade

Q2,How to contact with us?

Trade manager online,chat with me directly.
Send an inqury to us.
Make a call to us:+86-18202574916




Q3,What other items from this supplier?
angle line structural steel,H beam,I beam,Channel.
Square,rectangular,round hollow section pipe.
Steel plate,checker plate,corrugated sheet,steel coil.
Flat,square,round bar.ppgl,PPGL/PPCR/PPGI
