Good Quality Section Steel – Hot Rolled Mild Steel U Channel Iron S235jr Ss400 -Geili Detail:

Product Description

Comparison Table:

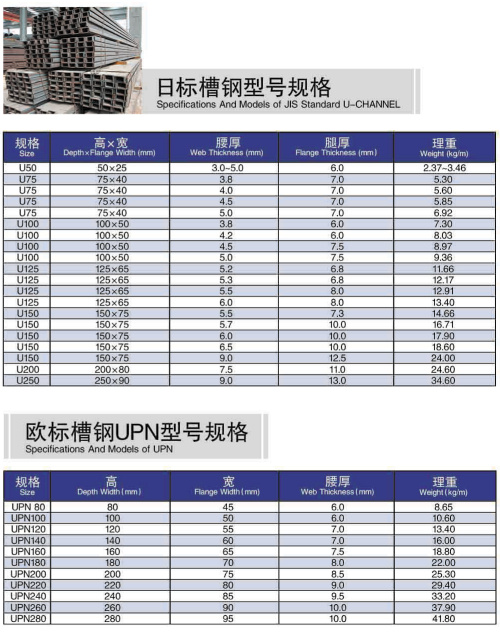

JIS Standard Channels:

Dimensions (mm)	Unit Weight (kg/m)	Dimensions (mm)	Unit Weight (kg/m)
50X25X(3.0-5.0)X6.0	2.37-3.46	125X65X5.5X8.0	12.91
75X40X3.8X7.0	5.30	125X65X6.0X8.0	13.40
75X40X4.0X7.0	5.60	150X75X5.5X7.3	14.66
75X40X4.5X7.0	5.85	150X75X5.7X10.0	16.71
75X40X5.0X7.0	6.92	150X75X6.0X10.0	17.90
100X50X3.8X6.0	7.30	150X75X6.5X10.0	18.60
100X50X4.2X6.0	8.03	150X75X9X12.50	24.0
100X50X4.5X7.5	8.97	200X80X7.5X11.0	24.6
100X50X5.0X7.5	9.36	200X90X8.0X13.5	30.3
125X65X5.2X6.8	11.66	250X90X9.0X13.0	34.6
125X65X5.3X6.8	12.17	300X90X9.0X13.0	38.1

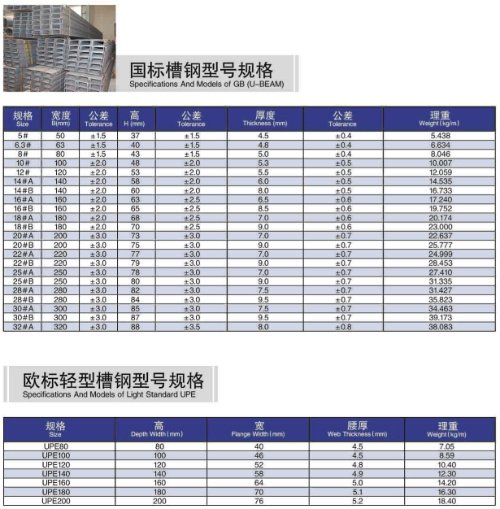

GB Standard Channels:

Size	Specification(mm)			Theory Weight (kg/m)
Size	h	b	d	Theory Weight (kg/m)
5#	50	37	4.5	5.438
6.3#	63	40	4.8	6.634
8#	80	43	5	8.045
10#	100	48	5.3	10.007
12#	120	53	5.5	12.059
12.6	126	53	5.5	12.319
14#a	140	58	6	14.535
14#b	140	60	8	16.733
16#a	160	63	6.5	17.24
16#b	160	65	8.5	19.752
18#a	180	68	7	20.174
18#b	180	70	9	23
20#a	200	73	7	22.637
20#b	200	75	9	25.777
22#a	220	77	7	24.999
22#b	220	79	9	28.453
25#a	250	78	7	27.41
25#b	250	80	9	31.335
28#a	280	82	7.5	31.427
28#b	280	84	9.5	35.832
30#a	300	85	7.5	34.463
30#b	300	87	9.5	39.173
32#a	320	88	8	38.083
32#b	320	90	10	43.107
36#a	360	96	9	47.814
36#b	360	98	11	53.466
40#a	400	100	10	58.928
40#b	400	102	12.5	65.208

EN Standard Channels:

Size	Dimensions (mm)	Unit Weight (kg/m)
UPN50	50X25X5X6.0	3.86
UPN80	80X45X6X8.0	8.65
UPN100	100X50X6X8.5	10.6
UPN120	120X55X7X9.0	13.4
UPN140	140X60X7X10.0	16.0
UPN160	160X65X7.5X10.5	18.8
UPN180	180X70X8X11.0	220
UPN200	200X75X8.5X11.5	25.3

European Economical Channels:

Size	Dimensions (mm)	Unit Weight (kg/m)
UPE80	80X40X4.5X7.4	7.05
UPE100	100X46X4.5X7.6	8.59
UPE120	120X52X4.8X7.8	10.4
UPE140	140X58X4.9X8.1	12.3
UPE160	160X64X5.0X8.4	14.2
UPE180	180X70X5.1X8.7	16.3
UPE200	200X76X5.2X9.0	18.4

Hot Rolled Mild Steel U Channel Iron S235jr Ss400

Company Information

Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established. until now, yuxuan steel has staff of 192 persons, and passed trough the iso9001:2000 quality management suystem certification in 2014. with an average of 30,000tons for all sizes stock, the products have been saled all over the world. our sales amount has exceeded 1.2 million tons, including 260 million u.s. dollars of export, which makes yuxuan steel ranked top 5 in tangshan exportation area, and top 30 all over the china among steel exporting companies.

the main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.

our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. the company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also comprehensive after-sales service.

we are firmly conviced that we will have a much more promising future together!
Hot Rolled Mild Steel U Channel Iron S235jr Ss400

FAQ

Q: Are you trading company or manufacturer ?
A: We are trading company and factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A:TT/L/C
