Good Quality Section Steel – Hot Rolled Steel Flange Plate Sheet Pile -Geili Detail:
GB U type steel sheet piles
Size | Per piece | ||||
Specification | Width (mm) |
High (mm) |
Thick (mm) |
Section area (cm2) |
Weight (kg/m) |
400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 |
400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 |
400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 |
400 x 150 | 400 | 150 | 13.1 | 74.40 | 58.4 |
400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 |
600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 |
600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 |
600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 |
750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 |
750 | 205.5 | 11.5 | 109.9 | 86.3 | |
750 | 206 | 12.0 | 113.4 | 89.0 |
Z type steel sheet piles:
Specification | Width (mm) |
High (mm) |
Thick t (mm) |
Thick s (mm) |
Weight (kg/m) |
SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |

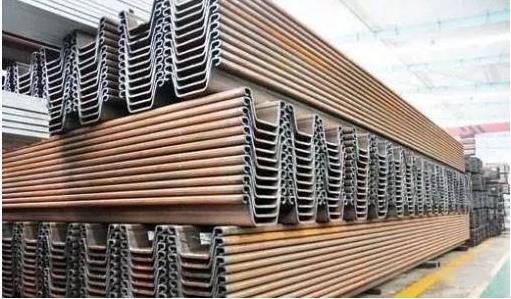

Products Show

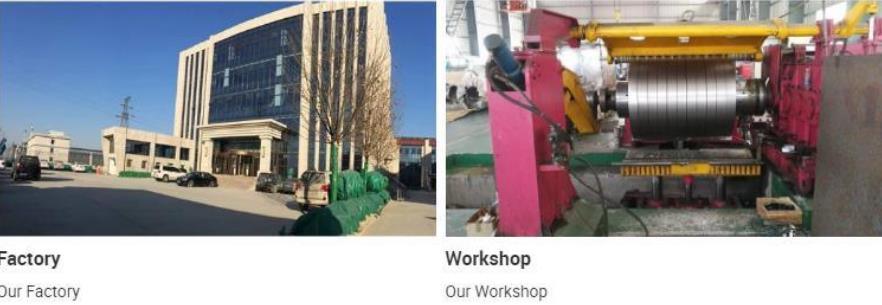

Our Company
FAQ
Q: What kind of company are you ?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

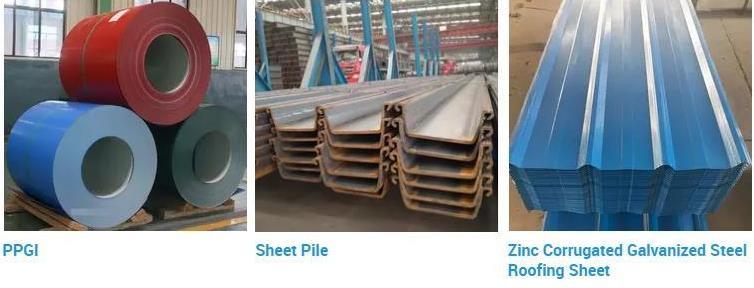

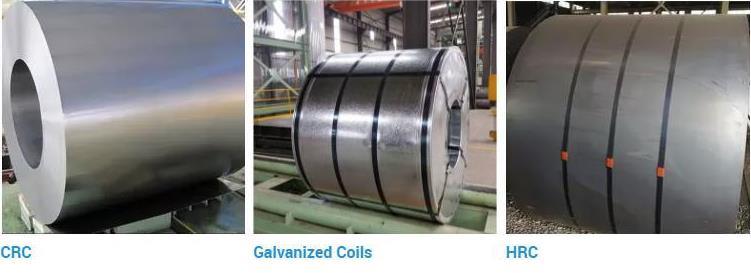

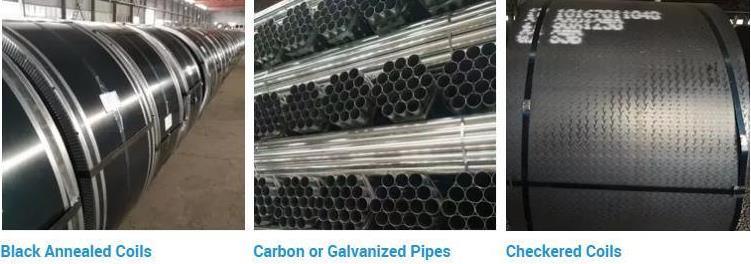

More Products
CONTACT US
We are a honest company and deal with concrete matters relating to work , we paid much attention on the product quality and long term cooperation . Sincerely wish to building a regular business with you till to we are old~~
CONTACT PERSON:grace
Mob:0086-18202574916
Product detail pictures:
