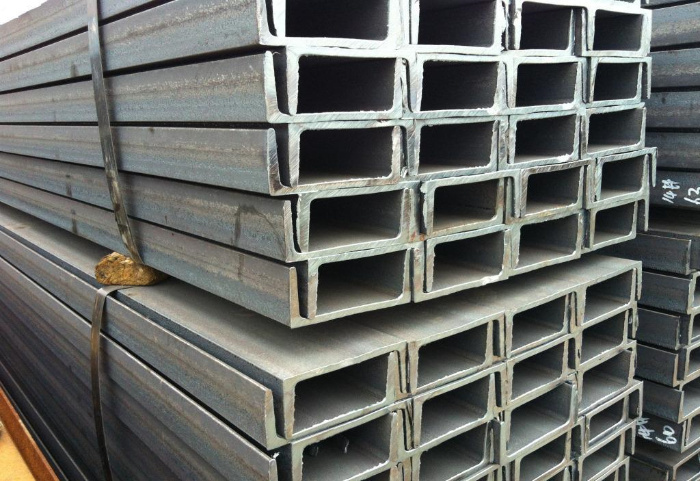

Good Quality Section Steel – Hot Sale Hot Rolled Construction Material U Steel Channel -Geili Detail:
Comparison Table:

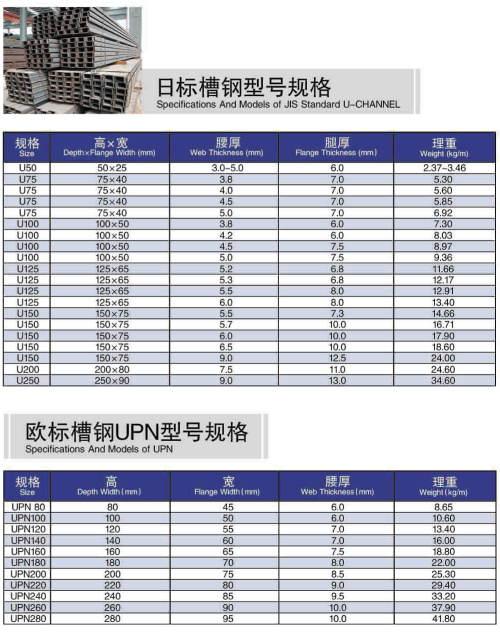

JIS Standard Channels:
| Dimensions (mm) | Unit Weight (kg/m) | Dimensions (mm) | Unit Weight (kg/m) |
| 50X25X(3.0-5.0)X6.0 | 2.37-3.46 | 125X65X5.5X8.0 | 12.91 |
| 75X40X3.8X7.0 | 5.30 | 125X65X6.0X8.0 | 13.40 |
| 75X40X4.0X7.0 | 5.60 | 150X75X5.5X7.3 | 14.66 |
| 75X40X4.5X7.0 | 5.85 | 150X75X5.7X10.0 | 16.71 |
| 75X40X5.0X7.0 | 6.92 | 150X75X6.0X10.0 | 17.90 |
| 100X50X3.8X6.0 | 7.30 | 150X75X6.5X10.0 | 18.60 |
| 100X50X4.2X6.0 | 8.03 | 150X75X9X12.50 | 24.0 |
| 100X50X4.5X7.5 | 8.97 | 200X80X7.5X11.0 | 24.6 |
| 100X50X5.0X7.5 | 9.36 | 200X90X8.0X13.5 | 30.3 |
| 125X65X5.2X6.8 | 11.66 | 250X90X9.0X13.0 | 34.6 |
| 125X65X5.3X6.8 | 12.17 | 300X90X9.0X13.0 | 38.1 |

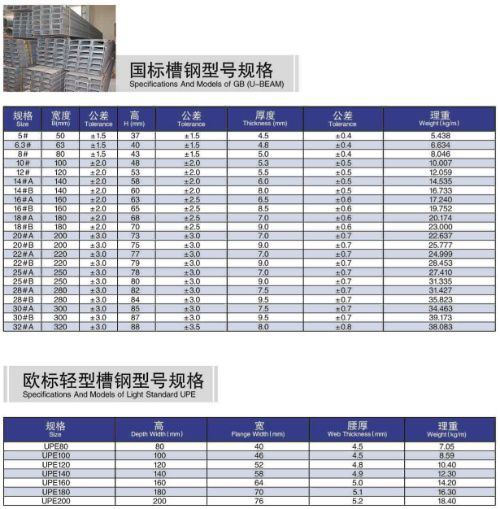

GB Standard Channels:
| Size | Specification(mm) | Theory Weight (kg/m) |
||
| h | b | d | ||
| 5# | 50 | 37 | 4.5 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 6.634 |
| 8# | 80 | 43 | 5 | 8.045 |
| 10# | 100 | 48 | 5.3 | 10.007 |
| 12# | 120 | 53 | 5.5 | 12.059 |
| 12.6 | 126 | 53 | 5.5 | 12.319 |
| 14#a | 140 | 58 | 6 | 14.535 |
| 14#b | 140 | 60 | 8 | 16.733 |
| 16#a | 160 | 63 | 6.5 | 17.24 |
| 16#b | 160 | 65 | 8.5 | 19.752 |
| 18#a | 180 | 68 | 7 | 20.174 |
| 18#b | 180 | 70 | 9 | 23 |
| 20#a | 200 | 73 | 7 | 22.637 |
| 20#b | 200 | 75 | 9 | 25.777 |
| 22#a | 220 | 77 | 7 | 24.999 |
| 22#b | 220 | 79 | 9 | 28.453 |
| 25#a | 250 | 78 | 7 | 27.41 |
| 25#b | 250 | 80 | 9 | 31.335 |
| 28#a | 280 | 82 | 7.5 | 31.427 |
| 28#b | 280 | 84 | 9.5 | 35.832 |
| 30#a | 300 | 85 | 7.5 | 34.463 |
| 30#b | 300 | 87 | 9.5 | 39.173 |
| 32#a | 320 | 88 | 8 | 38.083 |
| 32#b | 320 | 90 | 10 | 43.107 |
| 36#a | 360 | 96 | 9 | 47.814 |
| 36#b | 360 | 98 | 11 | 53.466 |
| 40#a | 400 | 100 | 10 | 58.928 |
| 40#b | 400 | 102 | 12.5 | 65.208 |
EN Standard Channels:
| Size | Dimensions (mm) | Unit Weight (kg/m) |
| UPN50 | 50X25X5X6.0 | 3.86 |
| UPN80 | 80X45X6X8.0 | 8.65 |
| UPN100 | 100X50X6X8.5 | 10.6 |
| UPN120 | 120X55X7X9.0 | 13.4 |
| UPN140 | 140X60X7X10.0 | 16.0 |
| UPN160 | 160X65X7.5X10.5 | 18.8 |
| UPN180 | 180X70X8X11.0 | 220 |
| UPN200 | 200X75X8.5X11.5 | 25.3 |
European Economical Channels:
| Size | Dimensions (mm) | Unit Weight (kg/m) | |
| UPE80 | 80X40X4.5X7.4 | 7.05 | |
| UPE100 | 100X46X4.5X7.6 | 8.59 | |
| UPE120 | 120X52X4.8X7.8 | 10.4 | |
| UPE140 | 140X58X4.9X8.1 | 12.3 | |
| UPE160 | 160X64X5.0X8.4 | 14.2 | |
| UPE180 | 180X70X5.1X8.7 | 16.3 | |
| UPE200 | 200X76X5.2X9.0 | 18.4 | |
Company Information
Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established. until now, yuxuan steel has staff of 192 persons, and passed trough the iso9001:2000 quality management suystem certification in 2014. with an average of 30,000tons for all sizes stock, the products have been saled all over the world. our sales amount has exceeded 1.2 million tons, including 260 million u.s. dollars of export, which makes yuxuan steel ranked top 5 in tangshan exportation area, and top 30 all over the china among steel exporting companies.
the main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.
our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. the company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also comprehensive after-sales service.
we are firmly conviced that we will have a much more promising future together!
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company and factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:TT/L/C
If you have any question, contact me as below:

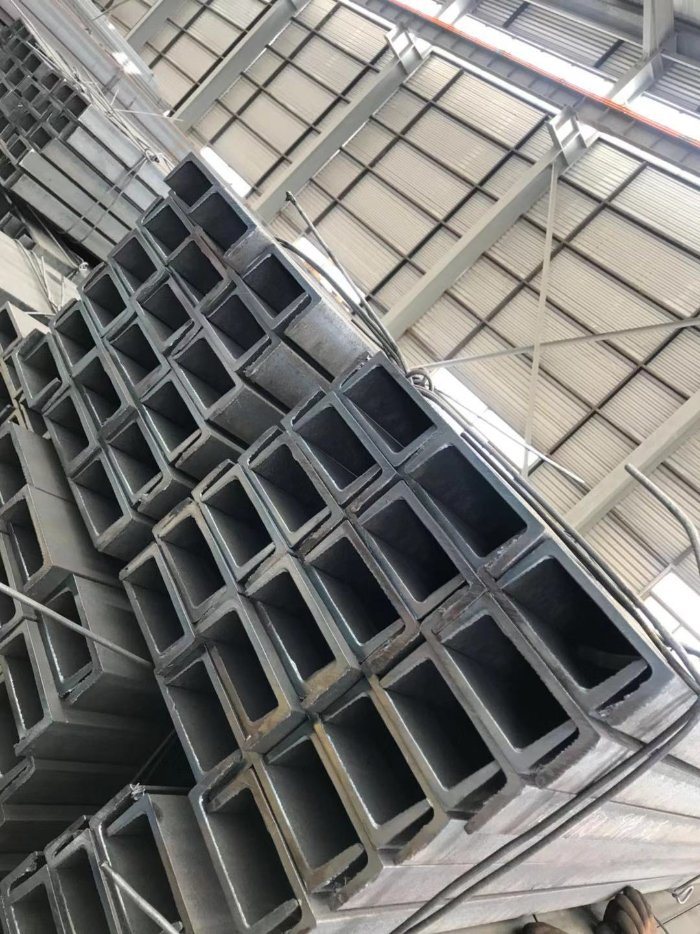

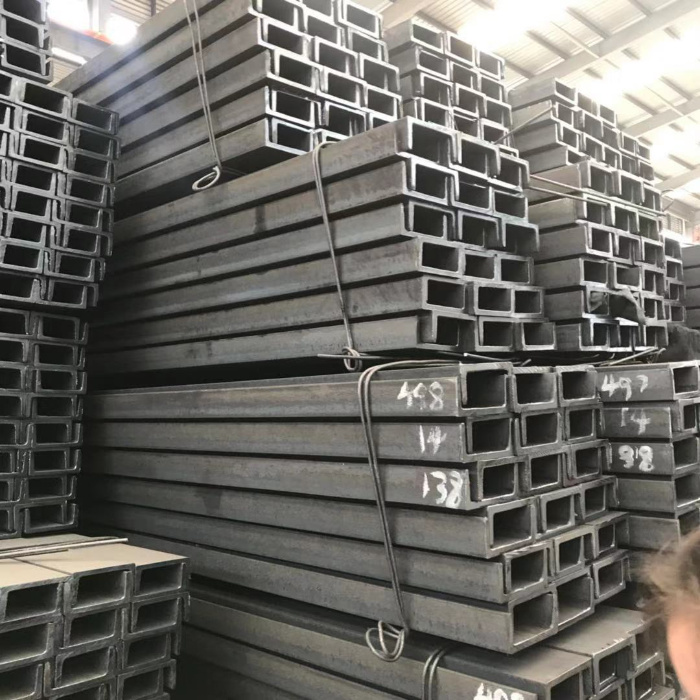

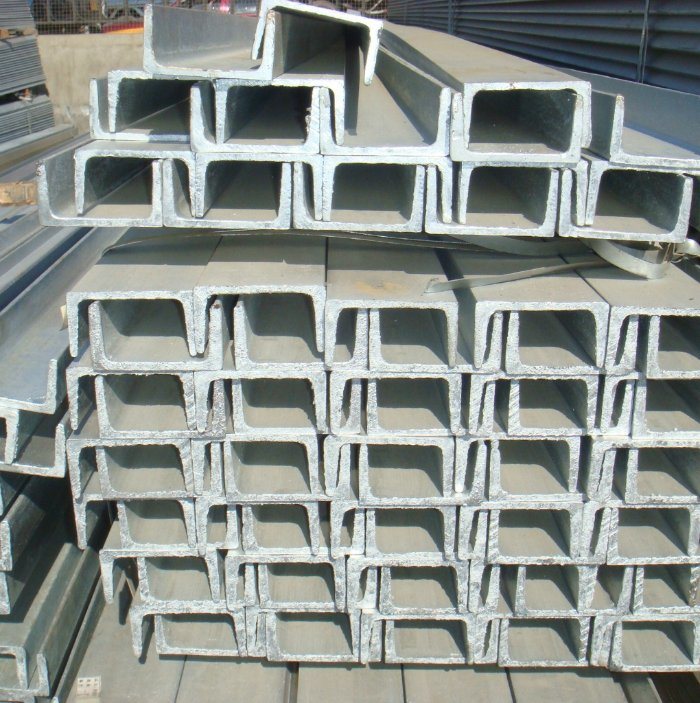

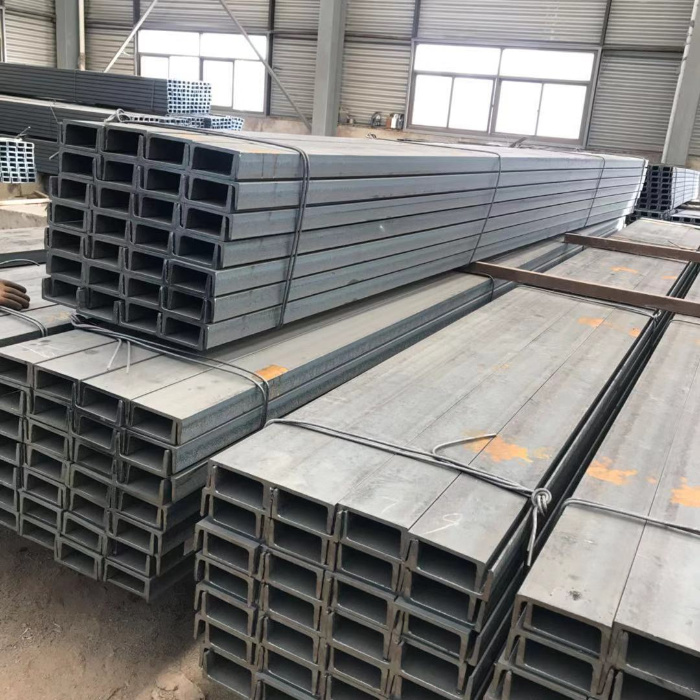

Product detail pictures:
