Good Quality Section Steel – Steel Profile Galvanized Steel U Channel -Geili Detail:

Product Description

Comparison Table:
JIS Standard Channels:

Dimensions (mm) Unit Weight (kg/m) Dimensions (mm) Unit Weight (kg/m)
50X25X(3.0-5.0)X6.0 2.37-3.46 125X65X5.5X8.0 12.91
75X40X3.8X7.0 5.30 125X65X6.0X8.0 13.40
75X40X4.0X7.0 5.60 150X75X5.5X7.3 14.66
75X40X4.5X7.0 5.85 150X75X5.7X10.0 16.71
75X40X5.0X7.0 6.92 150X75X6.0X10.0 17.90
100X50X3.8X6.0 7.30 150X75X6.5X10.0 18.60
100X50X4.2X6.0 8.03 150X75X9X12.50 24.0
100X50X4.5X7.5 8.97 200X80X7.5X11.0 24.6
100X50X5.0X7.5 9.36 200X90X8.0X13.5 30.3
125X65X5.2X6.8 11.66 250X90X9.0X13.0 34.6
125X65X5.3X6.8 12.17 300X90X9.0X13.0 38.1


GB Standard Channels:

Size Specification(mm) Theory Weight
(kg/m)
h b d
5# 50 37 4.5 5.438
6.3# 63 40 4.8 6.634
8# 80 43 5 8.045
10# 100 48 5.3 10.007
12# 120 53 5.5 12.059
12.6 126 53 5.5 12.319
14#a 140 58 6 14.535
14#b 140 60 8 16.733
16#a 160 63 6.5 17.24
16#b 160 65 8.5 19.752
18#a 180 68 7 20.174
18#b 180 70 9 23
20#a 200 73 7 22.637
20#b 200 75 9 25.777
22#a 220 77 7 24.999
22#b 220 79 9 28.453
25#a 250 78 7 27.41
25#b 250 80 9 31.335
28#a 280 82 7.5 31.427
28#b 280 84 9.5 35.832
30#a 300 85 7.5 34.463
30#b 300 87 9.5 39.173
32#a 320 88 8 38.083
32#b 320 90 10 43.107
36#a 360 96 9 47.814
36#b 360 98 11 53.466
40#a 400 100 10 58.928
40#b 400 102 12.5 65.208


EN Standard Channels:

Size Dimensions (mm) Unit Weight (kg/m)
UPN50 50X25X5X6.0 3.86
UPN80 80X45X6X8.0 8.65
UPN100 100X50X6X8.5 10.6
UPN120 120X55X7X9.0 13.4
UPN140 140X60X7X10.0 16.0
UPN160 160X65X7.5X10.5 18.8
UPN180 180X70X8X11.0 220
UPN200 200X75X8.5X11.5 25.3


European Economical Channels:

Size Dimensions (mm) Unit Weight (kg/m)
UPE80 80X40X4.5X7.4 7.05
UPE100 100X46X4.5X7.6 8.59
UPE120 120X52X4.8X7.8 10.4
UPE140 140X58X4.9X8.1 12.3
UPE160 160X64X5.0X8.4 14.2
UPE180 180X70X5.1X8.7 16.3
UPE200 200X76X5.2X9.0 18.4

Company Information

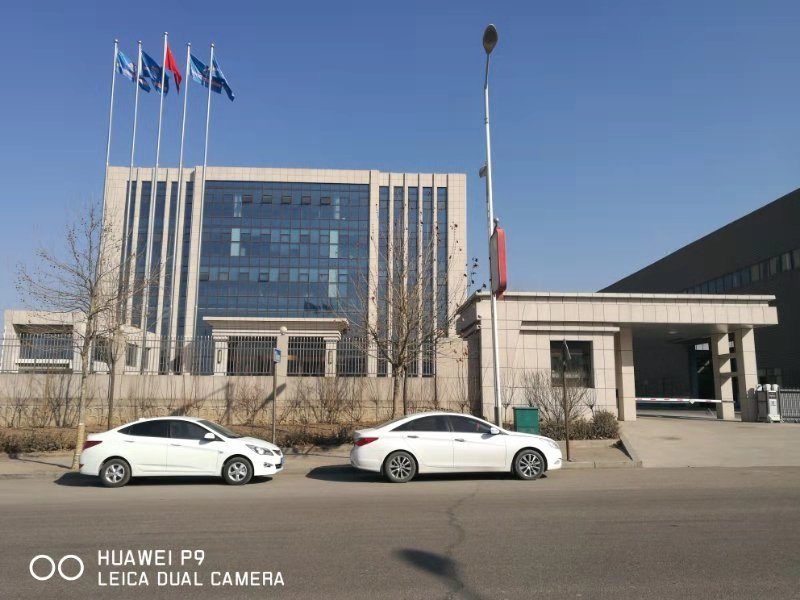

COMPANY PROFILE
