Good Quality Section Steel – Steel U Channel Price List Construction Material Sizes in China -Geili Detail:

Product Description

Comparison Table:

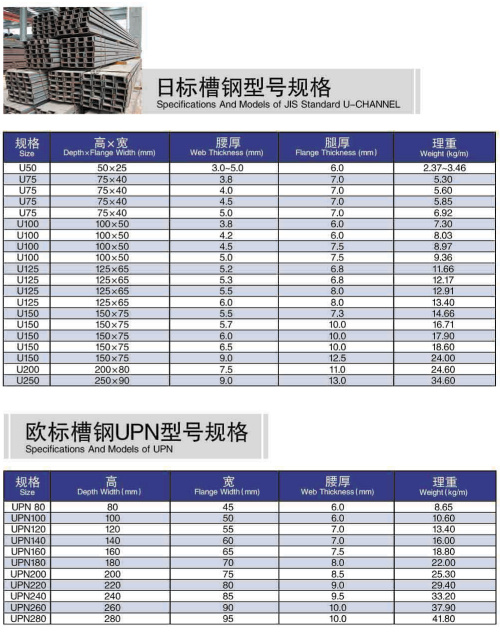

JIS Standard Channels:

Dimensions (mm) Unit Weight (kg/m) Dimensions (mm) Unit Weight (kg/m)
50X25X(3.0-5.0)X6.0 2.37-3.46 125X65X5.5X8.0 12.91
75X40X3.8X7.0 5.30 125X65X6.0X8.0 13.40
75X40X4.0X7.0 5.60 150X75X5.5X7.3 14.66
75X40X4.5X7.0 5.85 150X75X5.7X10.0 16.71
75X40X5.0X7.0 6.92 150X75X6.0X10.0 17.90
100X50X3.8X6.0 7.30 150X75X6.5X10.0 18.60
100X50X4.2X6.0 8.03 150X75X9X12.50 24.0
100X50X4.5X7.5 8.97 200X80X7.5X11.0 24.6
100X50X5.0X7.5 9.36 200X90X8.0X13.5 30.3
125X65X5.2X6.8 11.66 250X90X9.0X13.0 34.6
125X65X5.3X6.8 12.17 300X90X9.0X13.0 38.1

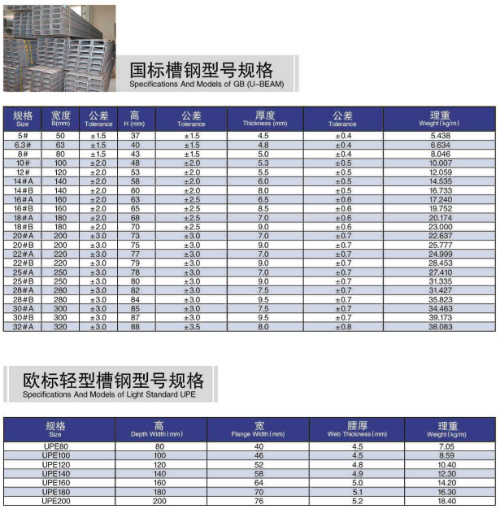

GB Standard Channels:

Size Specification(mm) Theory Weight
(kg/m)
h b d
5# 50 37 4.5 5.438
6.3# 63 40 4.8 6.634
8# 80 43 5 8.045
10# 100 48 5.3 10.007
12# 120 53 5.5 12.059
12.6 126 53 5.5 12.319
14#a 140 58 6 14.535
14#b 140 60 8 16.733
16#a 160 63 6.5 17.24
16#b 160 65 8.5 19.752
18#a 180 68 7 20.174
18#b 180 70 9 23
20#a 200 73 7 22.637
20#b 200 75 9 25.777
22#a 220 77 7 24.999
22#b 220 79 9 28.453
25#a 250 78 7 27.41
25#b 250 80 9 31.335
28#a 280 82 7.5 31.427
28#b 280 84 9.5 35.832
30#a 300 85 7.5 34.463
30#b 300 87 9.5 39.173
32#a 320 88 8 38.083
32#b 320 90 10 43.107
36#a 360 96 9 47.814
36#b 360 98 11 53.466
40#a 400 100 10 58.928
40#b 400 102 12.5 65.208



EN Standard Channels:

Size Dimensions (mm) Unit Weight (kg/m)
UPN50 50X25X5X6.0 3.86
UPN80 80X45X6X8.0 8.65
UPN100 100X50X6X8.5 10.6
UPN120 120X55X7X9.0 13.4
UPN140 140X60X7X10.0 16.0
UPN160 160X65X7.5X10.5 18.8
UPN180 180X70X8X11.0 220
UPN200 200X75X8.5X11.5 25.3



European Economical Channels:

Size Dimensions (mm) Unit Weight (kg/m)
UPE80 80X40X4.5X7.4 7.05
UPE100 100X46X4.5X7.6 8.59
UPE120 120X52X4.8X7.8 10.4
UPE140 140X58X4.9X8.1 12.3
UPE160 160X64X5.0X8.4 14.2
UPE180 180X70X5.1X8.7 16.3
UPE200 200X76X5.2X9.0 18.4

Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China

Company Information

Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established. until now, yuxuan steel has staff of 192 persons, and passed trough the iso9001:2000 quality management suystem certification in 2014. with an average of 30,000tons for all sizes stock, the products have been saled all over the world. our sales amount has exceeded 1.2 million tons, including 260 million u.s. dollars of export, which makes yuxuan steel ranked top 5 in tangshan exportation area, and top 30 all over the china among steel exporting companies.

the main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.

our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. the company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also comprehensive after-sales service.

we are firmly conviced that we will have a much more promising future together!
Steel U Channel Price List Construction Material Sizes in China
Steel U Channel Price List Construction Material Sizes in China



FAQ

Q: Are you trading company or manufacturer ?
A: We are trading company and factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A:TT/L/C
