Steel Rolling Mill Equipment Automatic Walking Beam Cooling Bed

Cooling bed is an important equipment in the field of steel rolling. It used to receiving, transmissing and cooling the rolled piece. After sizing or reducing , the temperature of pipe is generally above 700 °C. It must be cooled to below 150 °C for subsequent finishing process. The pipe cooling is usually carried out on cooling bed.

Main parts
Cooling bed include mechanical drive system, water cooling system, work surface and fixed support and so on.
Advantage
(1) simple structure;
(2) low investment;
(3) easy operation.

Composition:Cooling bed consist of mechanical transmission system, water cooling system, cooling bed working table and fixed support.

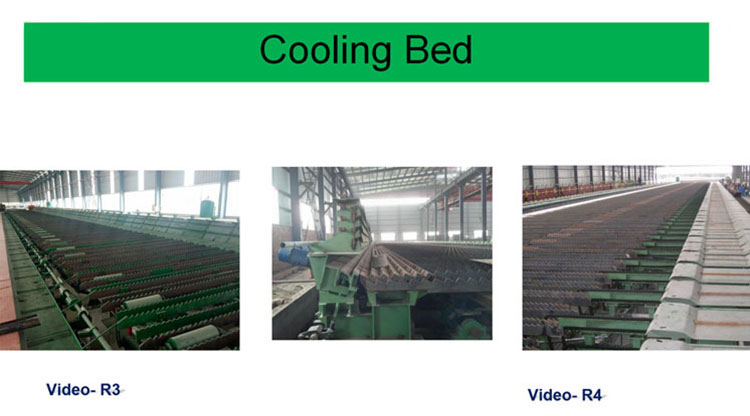

Working principle: The finished products are delivered to cooling bed via conveying roller table, and then extracted by the rack step by step, being pushed to the top of cooling bed, to achieve the effect of cooling rolled piece.

Main application: The cooling bed equipment is mainly used for naturally slow on-line cooling of rolled steel plate. In the profile production line, cooling bed also has the function of preventing bending, to prevent irregular curve of profiles through the process of natural cooling due to various quality problems. Areas of application: mainly used in steel industry, metallurgical industry, rebar production line, round production line, pipe production line, etc.

Company Information

FUJIAN PUTIAN GEILI MACHINERY MANUFACTURING CO.,LTD

Main products: all kinds of specifications continuous casting machines, rolling production line equipment and various auxiliary equipment, also the spare parts. Besides, we provide technical consultant, turnkey solution and one-stop service for steel plant of deformed rebar , wire rod , angle bar, channel beam, strip and other steel related production line. The Solution was based on the customer request, such as annual capacity from 30,000 tons to over 800,000 tons, rolling speed from 3 m/s to 90 m/s.

Cambodia( CHINA STEEL Co, LTD )Project

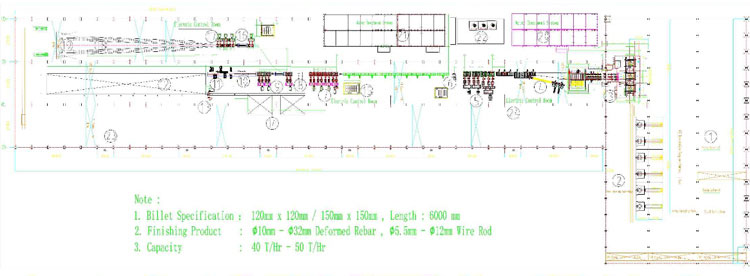

Annual Capacity of 300,000 Tons of Deformed Rebar Wire Rod Production Line

1. Steel Scrap Storage Area

2. Intermediate Frequency Furnace

3.Continuous Casting Machine

4. Billet Reheating Induction Furnace

5.Continuous Roughing Mil

l6. #1 Flying Shear

7. Dual Channel Intermediate Mill

8. #2 Flying Shear9. Deformed Rebar Finishing Mill

9.Deformed Rebar Finishing Mill

10. TMT Quenching Box

11.43 Flying Shear

12. Rack Type Cooling Bed

13. Finishing Products Shear1

4. Deformed Rebar Collection Packing Platform

15. Lubrication Station

16. Wire Rod Finishing Mill

17. Laying Head

18. Scattered Cooling Table Roller

19. Wire Rod Collection Packing Platform

20. Water Reservoir for CC M

21. Water Reservoir for Rolling Mill

22. High Voltage Transformer Room

23. Finishing Product Storage Area

24. Electrical Control Room
