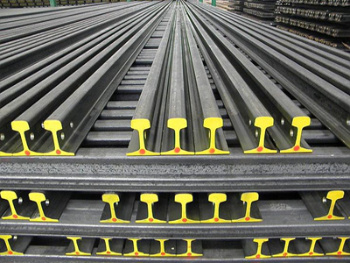

Light Rail and Heavy Steel Crane Rail

Short Description:

Product Description Sizes Available: 1. Light rail Size: 8kg, 12kg, 15kg, 22kg, 24kg, 30kgMaterial: 55Q/Q235Standard: Q/YG01-2014, GB11264-2012Length: 6m, 8m, 9m, 10m The light rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites. 2. Heavy railSize: 38kgs/m, 43kgs/m, 50kgs/mMaterial: U71MnStandard: GB2585-2007Length: 12m, 12.5m 3. Crane railSiz...


Product Detail

Product Tags

Product Description

Sizes Available:

1. Light rail
Size: 8kg, 12kg, 15kg, 22kg, 24kg, 30kg
Material: 55Q/Q235
Standard: Q/YG01-2014, GB11264-2012
Length: 6m, 8m, 9m, 10m

The light rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.

2. Heavy rail
Size: 38kgs/m, 43kgs/m, 50kgs/m
Material: U71Mn
Standard: GB2585-2007
Length: 12m, 12.5m

3. Crane rail
Size: QU70, QU80, QU100, QU120
Material: U71Mn
Standard: YB/T5055-93
Length: 12m

4. I-Beam
Size: 9#, 11#, 12#
Material: Q235/20MnK
Standard: YB/T5047-2000
Length: 8m, 9m, 10m

5.U-Beam
Size: 25U, 29U, 36U
Material: 20MnK, Q275
Standard: GB4697-2008
Length: 8m, 9m, 10m, 12m


Name of Commodity Specification Materials  (Steel Grade) Standard        of Products Theory Weight (kgs/M) Length of Dimension    (M) Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail 4kgs/m Q235 Q/YYG001-2008 4kgs/m 6,8,9,10 75
8kgs/m Q235 Q/YYG001-2008 8.42kgs/m 55
12kgs/m Q235 GB11264-89 12.2kgs/m 36
15kgs/m Q235/55Q/50Q GB11264-89 15.2kgs/m 28
18kgs/m Q235/55Q/50Q YB222-63 18.06kgs/m 21
22kgs/m Q235/55Q/50Q GB11264-89 22.3kgs/m 21
24kgs/m Q235/55Q/50Q Q/YYG001-2008 24.46kgs/m 21
30kgs/m Q235/55Q/50Q GB11264-89 30.1kgs/m 15

Light Rail and Heavy Steel Crane RailLight Rail and Heavy Steel Crane Rail

Light Rail and Heavy Steel Crane RailLight Rail and Heavy Steel Crane Rail

Light Rail and Heavy Steel Crane Rail
Light Rail and Heavy Steel Crane Rail
Light Rail and Heavy Steel Crane Rail
Light Rail and Heavy Steel Crane Rail

Our Company

Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products.

Established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. With the great surport from customers in china

and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading

since established.

The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. Our company's

structural steel products are unique competitive. There are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars.

meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary

dvelopment in export business.

Our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. The

company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also

comprehensive after-sales service.

We are firmly conviced that we will have a much more promising future together!

Light Rail and Heavy Steel Crane Rail Light Rail and Heavy Steel Crane Rail

FAQ

Q: Are you trading company or manufacturer ?
A: We are trading company and factory.

Q: How long is your delivery time?
A: Generally, 10-25 working days after receiving deposit.
If the products out of stock, delivery time should depend on the production schedule.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A:TT/L/C at sight
