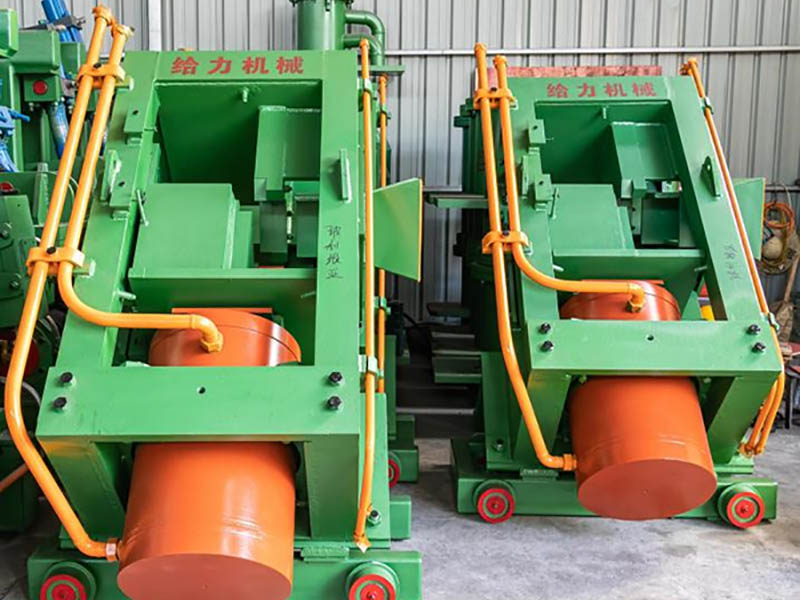

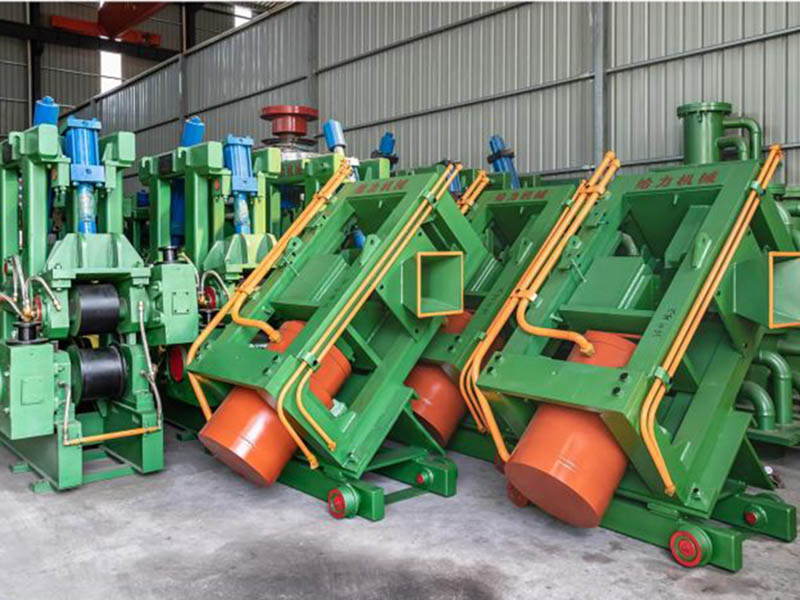

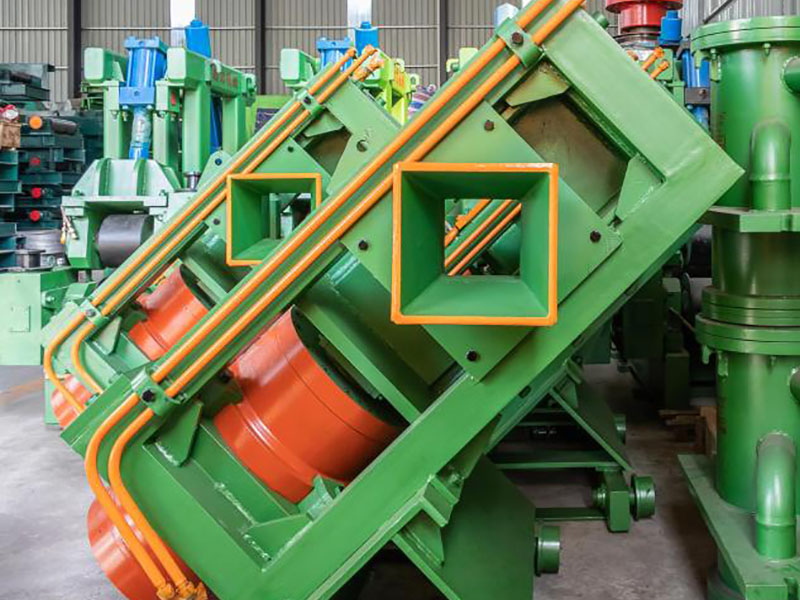

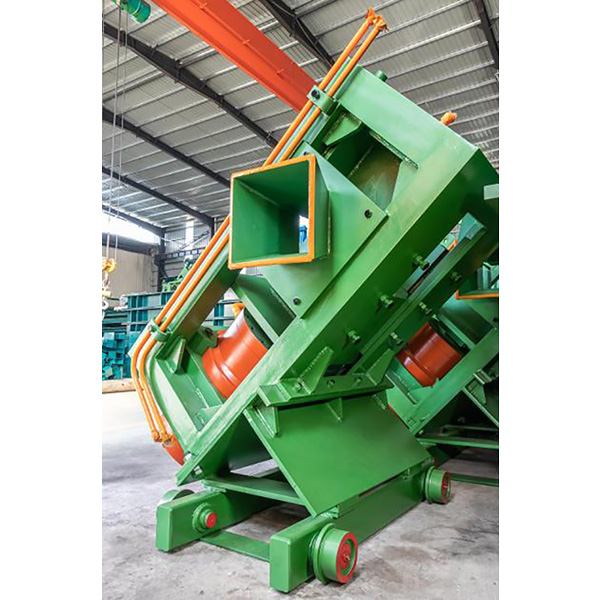

Horizontal 45° Hydraulic Shear of Geli Machinery (Fujian) Group Co., Ltd is mainly used for on-line shearing of continuous casting billets in the metallurgical industry. They are suitable for normal carbon steel and alloy steel with a temperature above 850°C and a cast billet section of 90x90-150x150mm. This product adopts hydraulic automatic control, safe and stable, reduces the loss of traditional flame cutting of billets, reduces labor and material costs, and has good economic benefits， which received unanimous praise from customers at home and abroad.
Main Function: Cut hot cast billets into billets of correct length.
Position: Arranged in the middle of the roller table before and after cutting.
Structure type: 45 degree cutting blade, with hydraulic mobile trolley.
Main Features
•Using 45 degree hydraulic shears, cutting fast;
•The shear surface geometry is good, and the casting billet has no warpage;
•The synchronization of the shearing machine and the billet makes the appearance of the cut billet beautiful;
•When changing the size of the cut slab surface, the shearing does not need to be adjusted;
•Compared with other cutting devices, the cutting equipment is easy to maintain, reliable, durable, seamless and smooth.
Main Data
•Cutting Temperature of Hot Cast Slab: minimum ≥750℃
•Length of cutting area: 900mm
•Synchronization device：hydraulic cylinder
•Working pressure: 12Mpa
•Maximum pressure: 16Mpa
•Cutable surface: 100x100～150×150mm
•The shortest length : 3m
•Shearing steel type: normal carbon and low alloy steel
