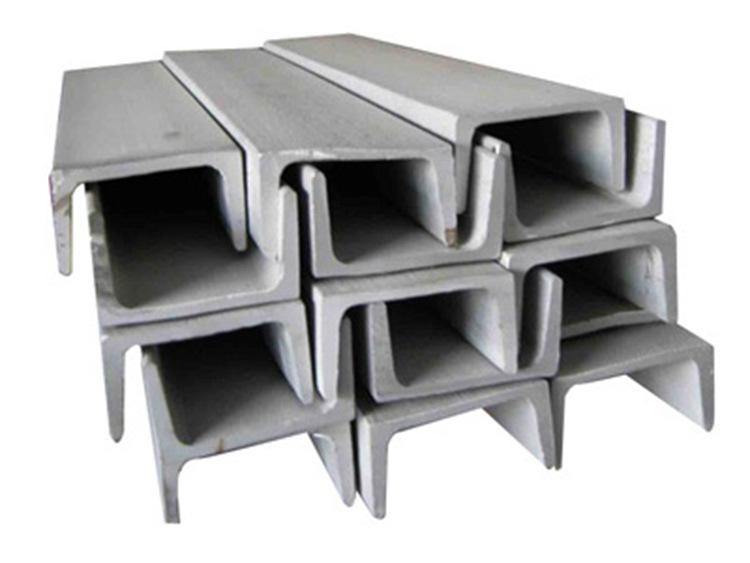

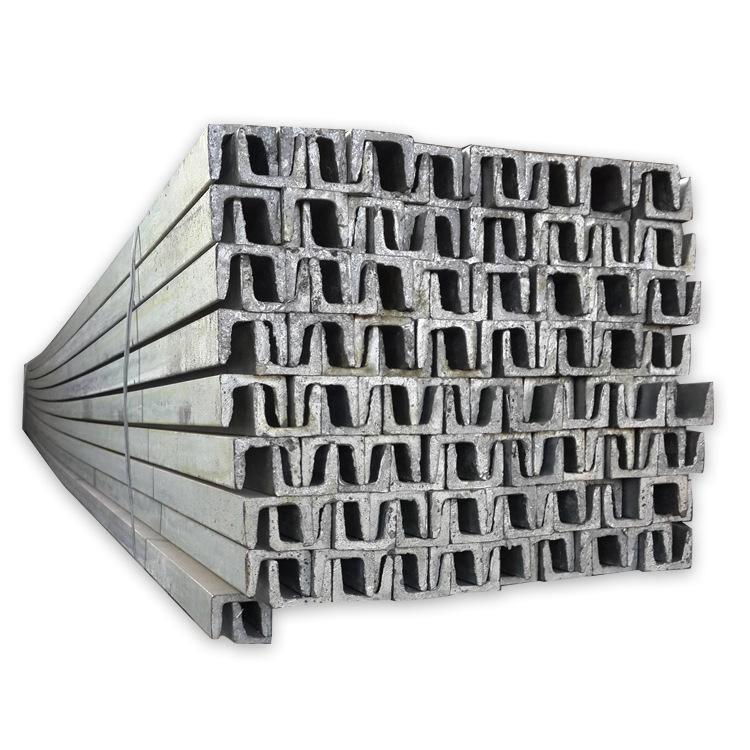

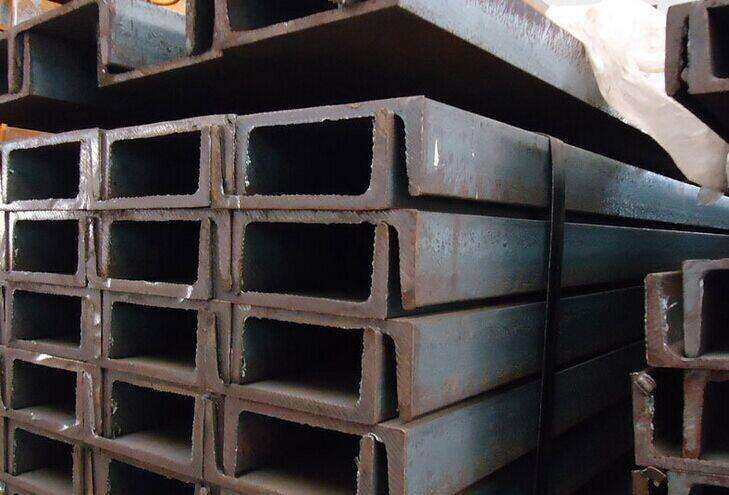

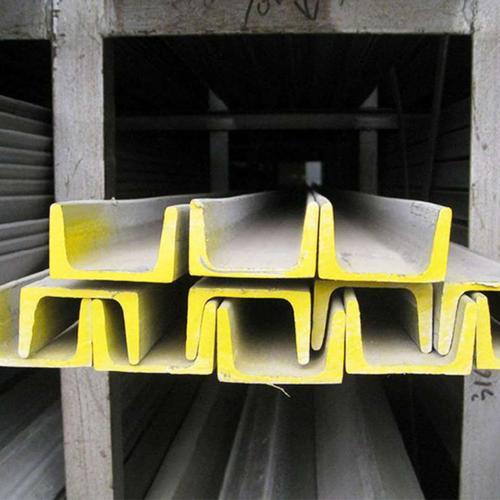

Q235 Hot Rolled Construction Steel U Channel U Beam

Q235 Hot Rolled Construction Steel U Channel U Beam Featured Image
  • Q235 Hot Rolled Construction Steel U Channel U Beam
  • Q235 Hot Rolled Construction Steel U Channel U Beam
  • Q235 Hot Rolled Construction Steel U Channel U Beam
  • Q235 Hot Rolled Construction Steel U Channel U Beam
  • Q235 Hot Rolled Construction Steel U Channel U Beam
  • Q235 Hot Rolled Construction Steel U Channel U Beam

Short Description:

1,Product details U CHANNEL / UPE   JIS UPN UPE Size(mm) Theoretical weight(kg/m) Size(mm) Theoretical weight(kg/m) Size(mm) Theoretical weight(kg/m) 75*40*3.8 5.3 80*45*6.0 8.64 80*40*4.5 7.05 75*40*5.0 6.92 100*50*6.0 10.6 100*46*4.5 8.59 100*50*3.8 7.3 120*55*7.0 13.4 120*52*4.8 10.4 100*50*5.0 9.36 140*60*7.0 16 140*58*4.9 12.3 125*65*5.2 11.66 160*65*7.5 18.8 160*64*5.0 14.2 125*65*6.0 13.4 180*70*8.0 22 180*70*5.1 16.3 150*7...


Download as PDF

Product Detail

Product Tags

1,Product details

U CHANNEL / UPE


JIS UPN UPE
Size(mm) Theoretical weight(kg/m) Size(mm) Theoretical weight(kg/m) Size(mm) Theoretical weight(kg/m)
75*40*3.8 5.3 80*45*6.0 8.64 80*40*4.5 7.05
75*40*5.0 6.92 100*50*6.0 10.6 100*46*4.5 8.59
100*50*3.8 7.3 120*55*7.0 13.4 120*52*4.8 10.4
100*50*5.0 9.36 140*60*7.0 16 140*58*4.9 12.3
125*65*5.2 11.66 160*65*7.5 18.8 160*64*5.0 14.2
125*65*6.0 13.4 180*70*8.0 22 180*70*5.1 16.3
150*75*5.5 14.66 200*75*8.5 25.3 200*76*5.2 18.4
150*75*6.5 18.6
GB Standard
50*37*4.5 5.438 140*60*8.0 16.733 200*75*9.0 25.777
63*40*4.8 6.634 160*63*6.5 17.24 250*78*7.0 27.41
80*43*5.0 8.045 160*65*8.5 19.752 250*80*9.0 31.335
100*48*5.3 10.007 180*68*7.0 20.174 300*85*7.5 34.463
120*53*5.5 12.059 180*70*9.0 23 300*87*9.5 39.173
140*58*6.0 14.535 200*73*7.0 22.637
STANDARD JIS G 3192 / BS EN 10056 / ASTM A6 / GBT706
Steel Grade

Q195: SS330, SPCC and SPHC

Q235: SS400, A36 and S235JR

Q345:SS500, S355JR and ST52
Size

50MMX37MM-400MMX102MM

Length: 5.8m, 6m, 11.8m, 12m or other lengths required
Packing Bundled by steel straps
Application chemical industry, shipping industry, manufacturing industry,
construction,decorate Industry, electric power, pump shafts,
 sanitary wares ,furniture handles,boiler, high temperature
resistant,low temperatureresistant, corrosion resistant.
Surface Treatment black, painting, or galvanized
Delivery Time fast delivery :10~15 days after deposit

Q235 Hot Rolled Construction Steel U Channel U Beam
Q235 Hot Rolled Construction Steel U Channel U Beam
Q235 Hot Rolled Construction Steel U Channel U BeamQ235 Hot Rolled Construction Steel U Channel U Beam

Company Information

Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established..

The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars.

We are firmly conviced that we will have a much more promising future together!
Q235 Hot Rolled Construction Steel U Channel U Beam

FAQ

Q1,How to get an accurate quotation?

 Product detail size & Length

 Product quantities.

 Product Material grade

Q2,How to contact with us?

Trade manager online,chat with me directly.

Send an inqury to us.

Q3,What other items from this supplier?

angle line structural steel,H beam,I beam,Channel.

Square,rectangular,round hollow section pipe.

Steel plate,checker plate,corrugated sheet,steel coil.

Flat,square,round bar.ppgl,PPGL/PPCR/PPGI
