Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA

Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA Featured Image
  • Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
  • Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
  • Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
  • Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
  • Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
  • Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA

Short Description:

Product Description 1.Materials: S235JR, S235JO, S355JRH,SS400, Q235B,Q345B 2.Surface: Black bared ,galvanized,painted Grade Chemical Composition & Mechanical Properties GB-Q235B Equal to JIS-SS400 or ASTM-A36 Chemical Composition  C:0.12-0.20,Si:≤0.30,Mn:0.30-0.67,S:≤0.045,P: ≤0.04 Mechanical Properties Y.S.≥235 Mpa, T.S.:375-500 Mpa,El≥2...


Download as PDF

Product Detail

Product Tags

Product Description

1.Materials: S235JR, S235JO, S355JRH,SS400, Q235B,Q345B

2.Surface: Black bared ,galvanized,painted

Grade Chemical Composition & Mechanical Properties
GB-Q235B Equal to JIS-SS400 or ASTM-A36 Chemical Composition
C:0.12-0.20,Si:≤0.30,Mn:0.30-0.67,S:≤0.045,P: ≤0.04
Mechanical Properties
Y.S.≥235 Mpa, T.S.:375-500 Mpa,El≥26%
GB-Q345B Equal to JIS-SS490 or ASTM-A572 Chemical Composition
C:≤0.20,Si:≤0.55,Mn:1.0-1.6,S:≤0.04,P: ≤0.04
Mechanical Properties
Y.S.≥345 Mpa, T.S.:470-630 Mpa,El ≥22%
SIZE (MM) WEIGHT (KG/M)   SIZE (MM) WEIGHT (KG/M)
100*100*6*8 17.2   388*402*15*15 141
125*125*6.5*9 23.8   390*300*10*16 107
148*100*6*9 21.4   394*398*11*18 147
150*150*7*10 31.9   394*405*18*18 169
150*75*5*7 14.3   396*199*7*11 56.7
175*175*7.5*11 40.3   400*150*8*13 55.8
175*90*5*8 18.2   400*200*8*13 66
194*150*6*9 31.2   400*400*13*21 172
198*99*4.5*7 18.5   400*408*21*21 197
200*100*5.5*8 21.7   414*405*18*28 233
200*200*8*12 50.5   428*407*20*35 284
200*204*12*12 56.7   440*300*11*18 124
244*175*7*11 44.1   446*199*8*12 66.7
248*124*5*8 25.8   450*150*9*14 65.5
250*125*6*9 29.7   450*200*9*14 76.5
250*250*9*14 72.4   482*300*11*15 115
250*255*14*14 82.2   488*300*11*18 129
294*200*8*12 57.3   496*199*9*14 79.5
294*302*12*12 85   500*200*10*16 89.6
298*149*5.5*8 32.6   506*201*11*19 103
300*150*6.5*9 37.3   582*300*12*17 137
300*300*10*15 94.5   588*300*12*20 151
300*305*15*15 106   594*302*14*23 175
338*351*13*13 106   596*199*10*15 95.1
340*250*9*14 79.7   600*200*11*17 106
344*348*10*16 115   606*201*12*20 120
344*354*16*16 131   692*300*13*20 166
346*174*6*9 41.8   700*300*13*24 185
350*175*7*11 50   792*300*14*22 191
350*350*12*19 137   800*300*14*26 210
350*357*19*19 156   900*300*16*28 243

Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA  Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA

Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA

Application

Widely used in various building structures, bridges, vehicles, brackets, machinery, etc., for example, the industrial structure of the steel bearing bracket,steel piles and underground, engineering supporting structure, petro chemical and power and other industrial equipment structure, shipbuilding, machinery manufacturing frame structure,train, car,tractor beam bracket, port conveyors,high speed shutter stents.

Packaging Detail: Suitable package for the long sea transport; In bundle with bulk; As customer's requirements.

Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AASs400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA

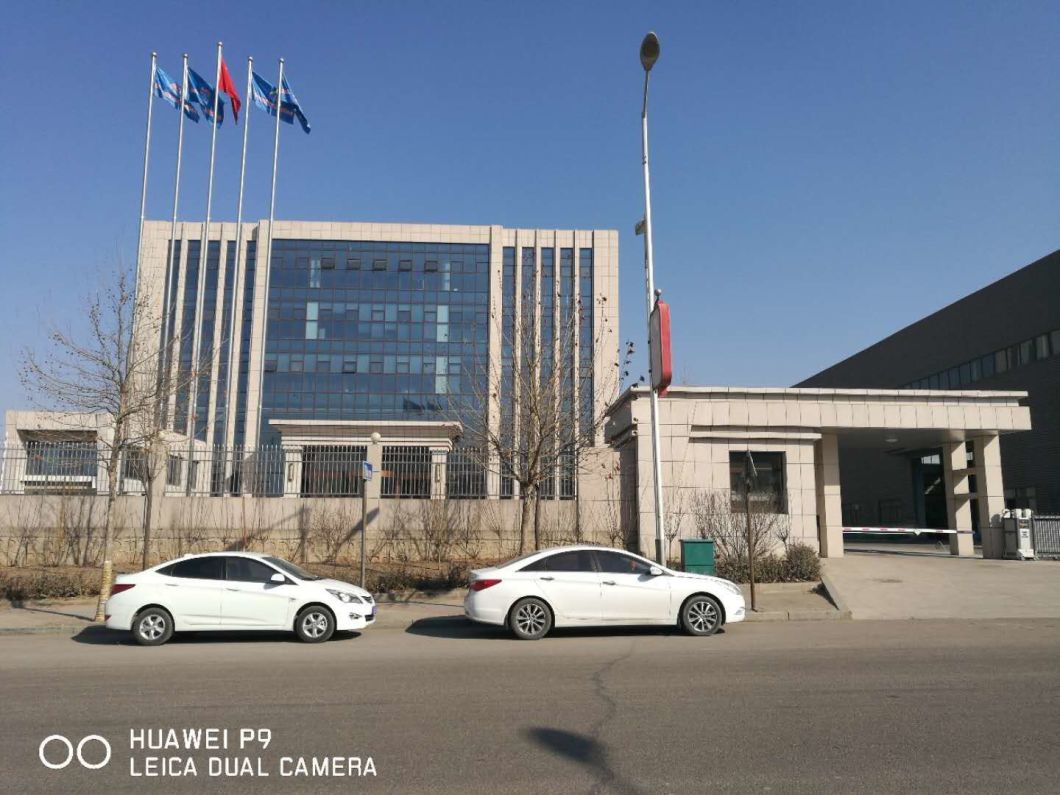

Company Information
Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established..

The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars.

We are firmly conviced that we will have a much more promising future together!
Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA


FAQ

Q1,How to get an accurate quotation?
 Product detail size & Length
 Product quantities.
 Product Material grade
Q2,How to contact with us?
Trade manager online,chat with me directly.
Send an inqury to us.
Q3,What other items from this supplier?
angle line structural steel,H beam,I beam,Channel.
Square,rectangular,round hollow section pipe.
Steel plate,checker plate,corrugated sheet,steel coil.
Flat,square,round bar.ppgl,PPGL/PPCR/PPGI
Ss400 Q235 Q345b Hot Rolled Wide Flange H Beam I Beam Ipe AA
