Steel Plate Pile Hot Rolled

Short Description:

GB U type steel sheet piles Size Per piece Specification Width(mm) High(mm) Thick(mm) Section area(cm2) Weight(kg/m) 400 x 85 400 85 8.0 45.21 35.5 400 x 100 400 100 10.5 61.18 48.0 400 x 125 400 125 13.0 76.42 60.0 400 x 150 400 150 13.1 74.40 58.4 400 x 170 400 170 15.5 96.99 76.1 600 x 130 600 130 10.3 78.7 61.8 600 x 180 600 180 13.4 103.9 81.6 600 x 210 600 210 18.0 135.3 106.2 750 x 205 750 204 10.0...

Send email to us Download as PDF

Product Detail

Product Tags

GB U type steel sheet piles

Size				Per piece
Specification	Width (mm)	High (mm)	Thick (mm)	Section area (cm2)	Weight (kg/m)
400 x 85	400	85	8.0	45.21	35.5
400 x 100	400	100	10.5	61.18	48.0
400 x 125	400	125	13.0	76.42	60.0
400 x 150	400	150	13.1	74.40	58.4
400 x 170	400	170	15.5	96.99	76.1
600 x 130	600	130	10.3	78.7	61.8
600 x 180	600	180	13.4	103.9	81.6
600 x 210	600	210	18.0	135.3	106.2
750 x 205	750	204	10.0	99.2	77.9
	750	205.5	11.5	109.9	86.3
	750	206	12.0	113.4	89.0

Z type steel sheet piles:

Specification	Width (mm)	High (mm)	Thick t (mm)	Thick s (mm)	Weight (kg/m)
SPZ12	700	314	8.5	8.5	67.7
SPZ13	700	315	9.5	9.5	74
SPZ14	700	316	10.5	10.5	80.3
SPZ17	700	420	8.5	8.5	73.1
SPZ18	700	418	9.10	9.10	76.9
SPZ19	700	421	9.5	9.5	80.0
SPZ20	700	421	10.0	10.0	83.5
SPZ24	700	459	11.2	11.2	95.7
SPZ26	700	459	12.3	12.3	103.3
SPZ28	700	461	13.2	13.2	110.0
SPZ36	700	499	15.0	11.2	118.6
SPZ38	700	500	16.0	12.2	126.4
SPZ25	630	426	12.0	11.2	91.5
SPZ48	580	481	19.1	15.1	140.2

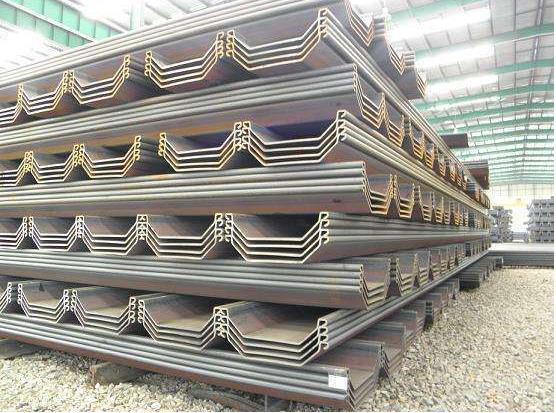

Products Show

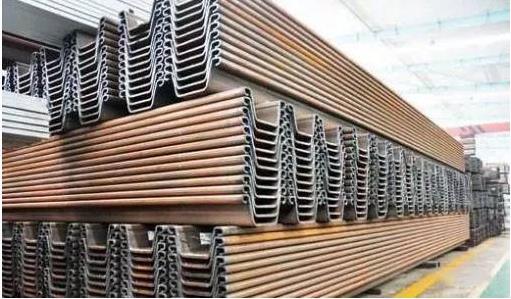

Steel Plate Pile Hot Rolled

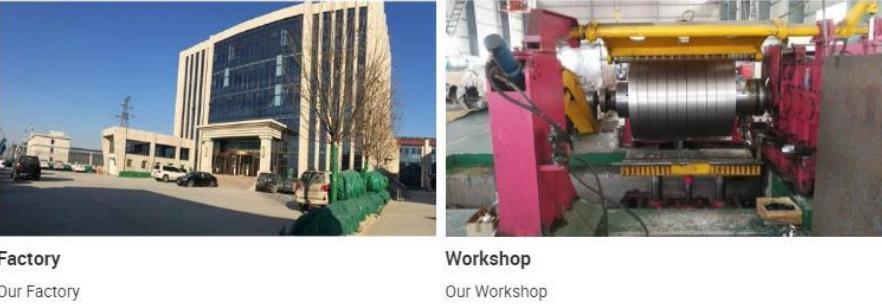

Our Company

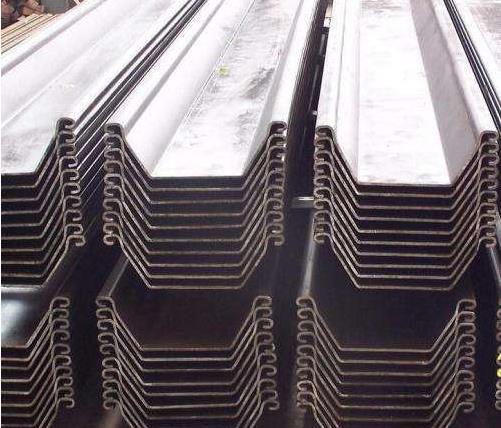

Steel Plate Pile Hot Rolled

FAQ

Q: What kind of company are you ?

A: We are trading company.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

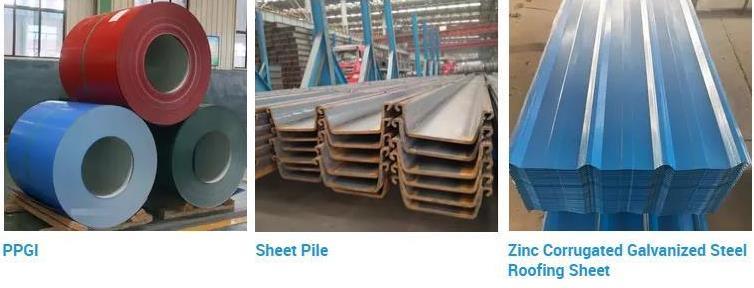

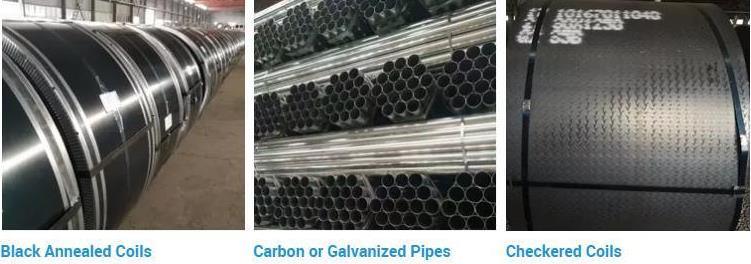

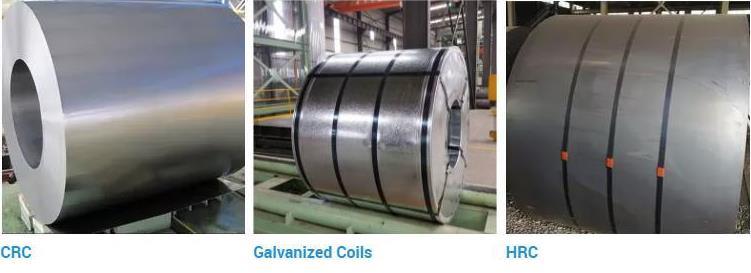

More Products
